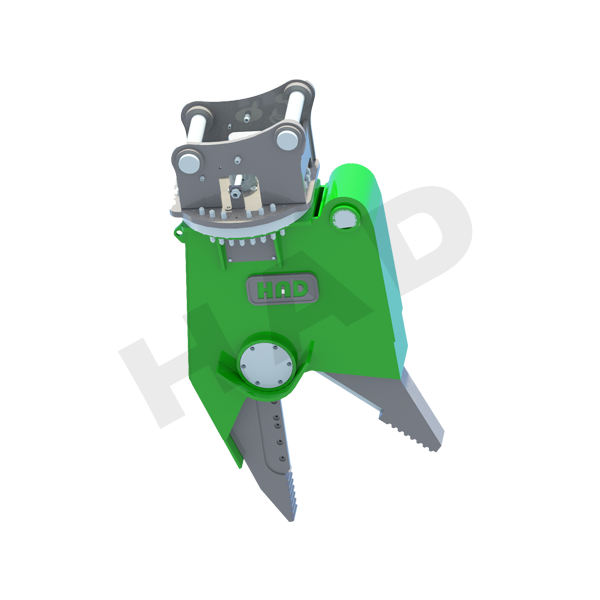

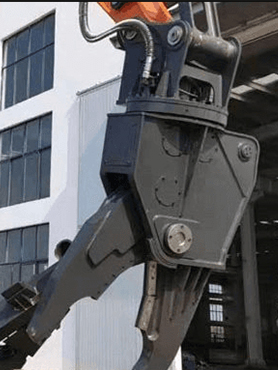

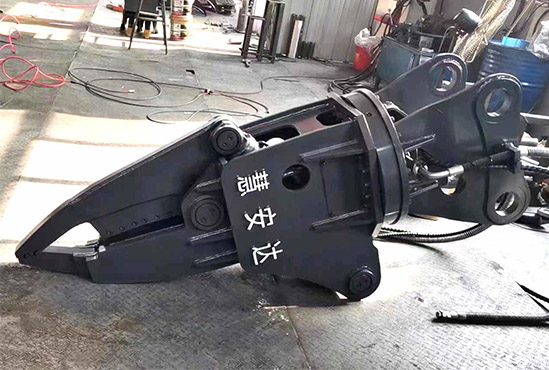

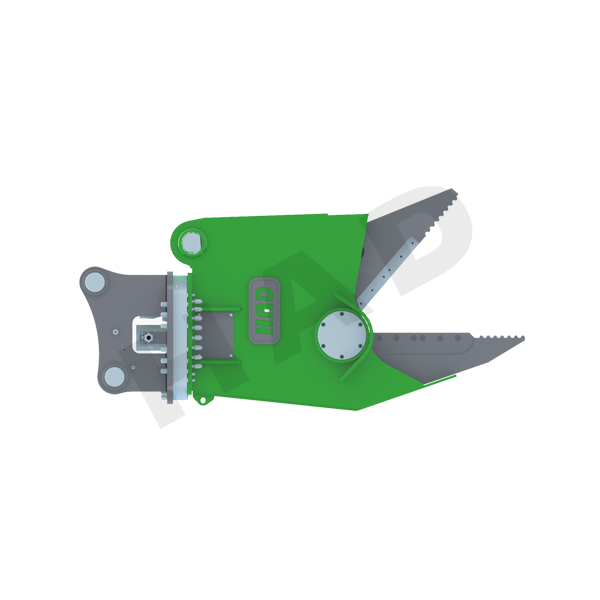

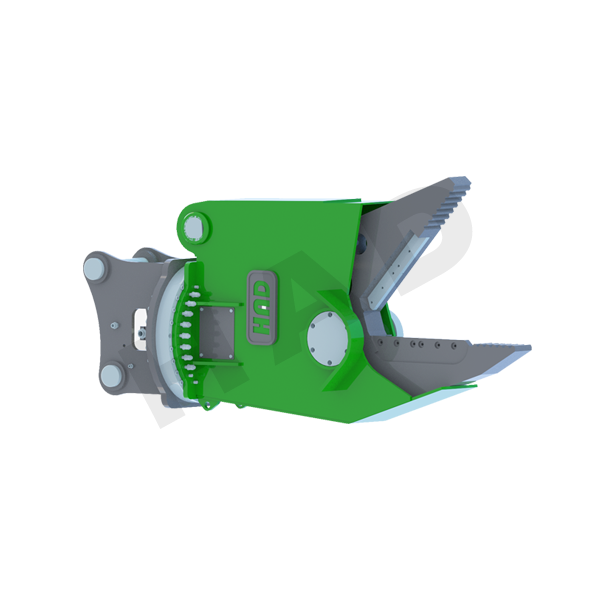

PRODUCT DETAILS
Application range:

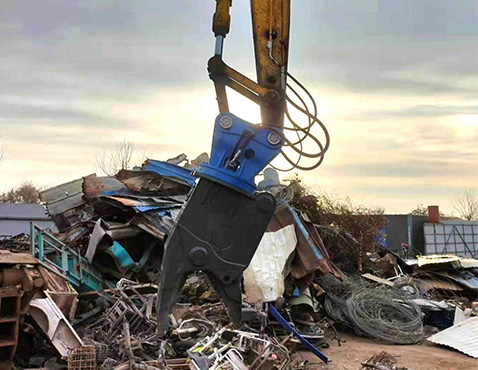

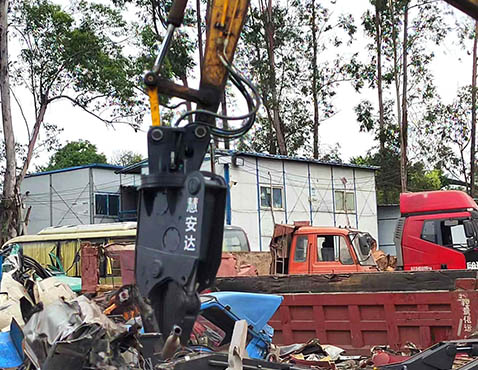

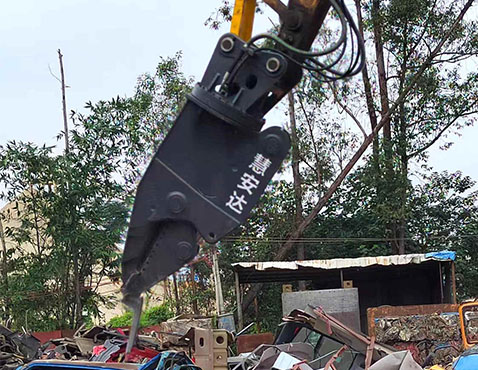

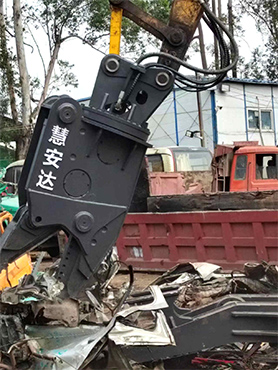

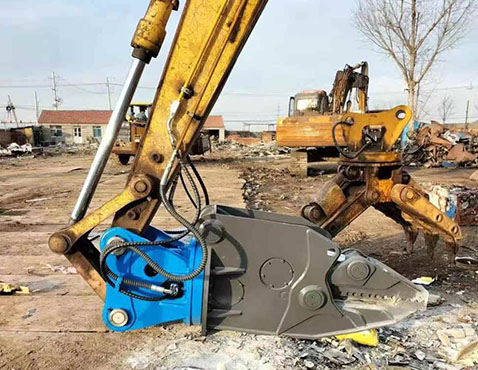

Dismantling scrap steel and dismantling scrap vehicles

Product features:
1.Dedicated rotary support, flexible operation, stable performance, and high torque;
2.The shear body is made of wear-resistant steel, with high strength, strong toughness, and strong wear resistance;
3.The blade is made of special materials, with strong toughness and longer service life;
4.Equipped with clamping arms, various scrapped vehicles can be quickly disassembled.


| category | Unit | HD-06 | HD-08 | HD-10 |
A | mm | 685 | 760 | 840 |
| B | mm | 2140 | 2380 | 2600 |
| C | mm | 850 | 945 | 1040 |
| Crusing force F1 | ton | 40 | 51 | 60 |
| Crusing force F2 | ton | 105 | 122 | 150 |
| Oil pressure | MPa | 20-25 | 25-30 | 25-30 |
| Suitable excavator | ton | 10-16 | 18-27 | 28-38 |
| Weight | kg | 1400-1600 | 1700-1800 | 2200-2500 |
