PRODUCT DETAILS
Application range:

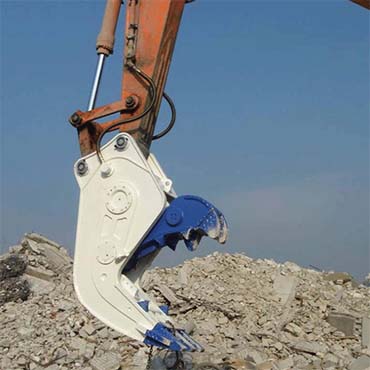

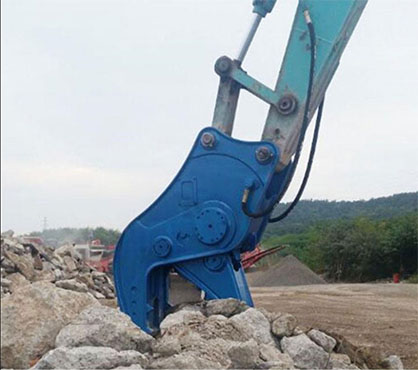

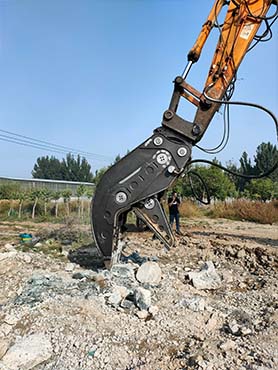

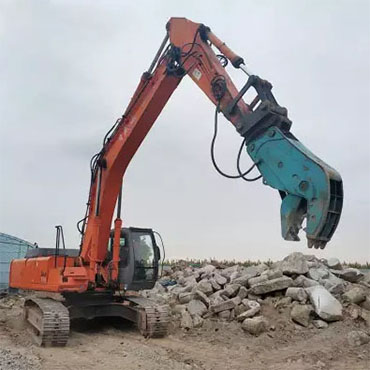

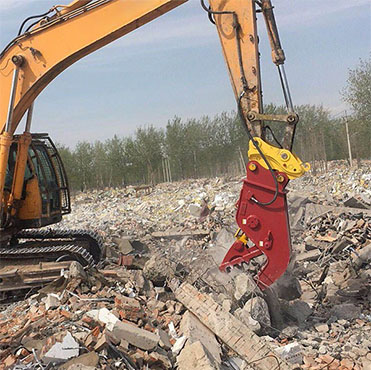

Crush building beams, columns, cement poles, etc.
Product features:
1.Adopting high-quality wear-resistant steel, with light weight and superior wear resistance;
2.Unique jaw tooth layout design, double layer wear-resistant protection;
3.The pin shaft is made of alloy steel, with high strength and good toughness.
4.Adopting a wide width crushing plate to achieve greater efficiency in separation work.
category | Unit | HD-06 | HD-08 | HD-10 |
A | mm | 1940 | 2287 | 2450 |
B | mm | 710 | 850 | 930 |
C | mm | 720 | 820 | 910 |
Crushing Force D | ton | 65 | 80 | 90 |
Crushing Force D | ton | 100 | 130 | 150 |
Oil Pressure | Mpa | 25-30 | 25-30 | 25-30 |
Excaoator Weight | ton | 12-16 | 18-27 | 28-38 |
Weight | kg | 1300-1400 | 1800-2000 | 2000-2100 |
● | mm | 25 | 30 | 35 |
