Application range：

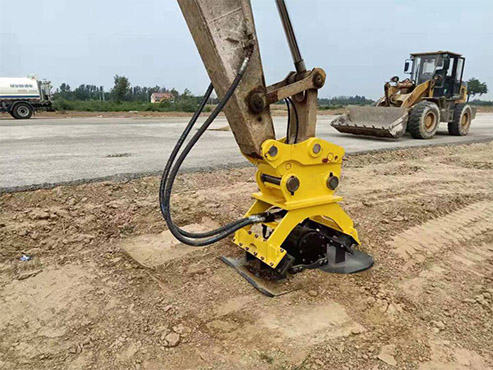

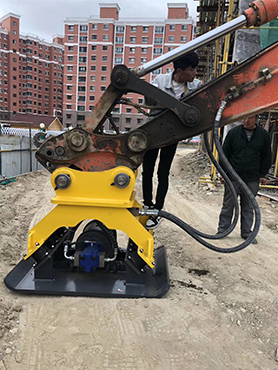

The leveling of highway railway slope protection and road surface, as well as the leveling of construction sites and factory floors.
Product features:
1.Simple structure, convenient operation, and easy maintenance;
2.Split mounted link structure, which can adapt to various excavators;
3.Adopting a side standing shock absorber design, the structure is compact and the excitation force is greater;
4.High quality steel, alloy steel pin shaft, sturdy and durable.
| category | Unit | HD-01 | HD-02/04 | HD-06 | HD-08 | HD-10 |
Height | mm | 435 | 530 | 650 | 720 | 730 |
| Width | mm | 442 | 550 | 700 | 900 | 900 |
| Force | ton | 3 | 4 | 6.5 | 11 | 15 |
| Vibration frequency | rpm/min | 2000 | 2000 | 2000 | 2200 | 2200 |
| Oil flow rate | l/min | 30-60 | 45-85 | 85-105 | 120-170 | 120-170 |
| pressure | kg/cm² | 100-130 | 100-130 | 100-150 | 150-200 | 150-200 |
| Strike area | mm | 800*442 | 900*550 | 1160*700 | 1300*900 | 1500*1000 |
| Suitable excavator | ton | 2-4 | 4-10 | 12-16 | 18-24 | 30-40 |
| Equipment weight | kg | 200 | 300-500 | 650-800 | 900-1000 | 1100-1300 |
