Stone/Scrap Grapple
GET A QUOTE
Service Hotline:
TEL:+86 13022730962
EMAIL:sales@had-tech.com
PRODUCT DETAILS



Application range:

Grab precious stones such as jade and marble, and scrap iron.

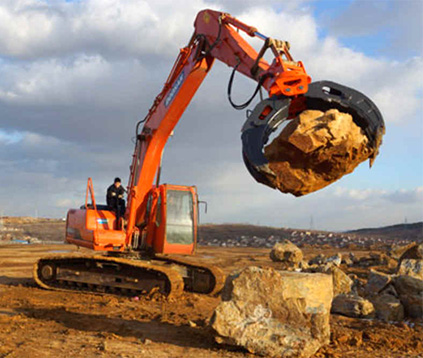

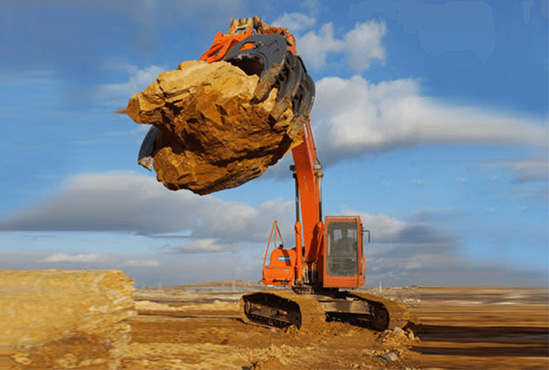

1.jpg 2.jpg

Product features:

1.Made of wear-resistant steel, lightweight and wear-resistant;

2.The pin shaft is made of alloy steel with an internal oil channel, which has high strength and good toughness;

3.The oil cylinder adopts honing tube and high-quality oil seal, with short working cycle and long service life;

4.The gripper teeth are made of manganese molybdenum alloy material, which is durable and durable.

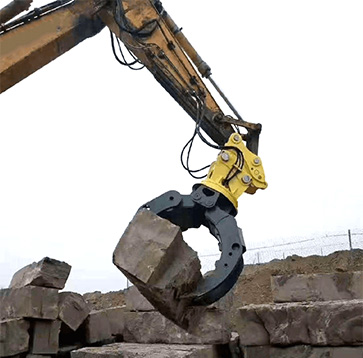

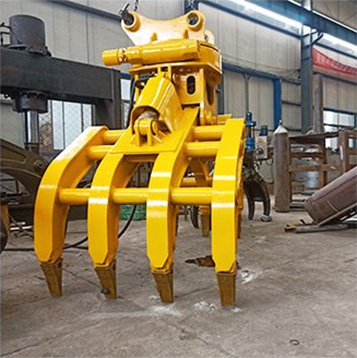

3.jpg 4.jpg

categoryUnitHD-02HD-04HD-06HD-08AHD-08BHD-10HD-14

Clamp size

mm

1300

1400

1800

2300

2500

2500

2500

Working pressure

kg/cm²

110 - 140

120 - 160

150 - 170

160 - 180

160 - 180

160 - 180

180 - 200

Work flow

lpm

30 - 55

50 - 100

90 - 110

100 - 140

130 - 170

130 - 170

200 - 250

Suitable excavator tonnage

ton

4 - 6

7 - 11

12 - 16

17 - 23

24 - 30

24 - 30

31 - 40

Weight

kg

320

390

740

1380

1700

1700

1900
