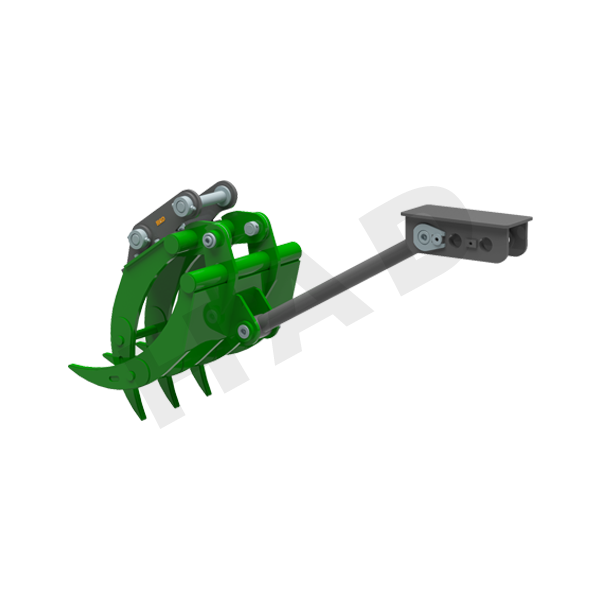

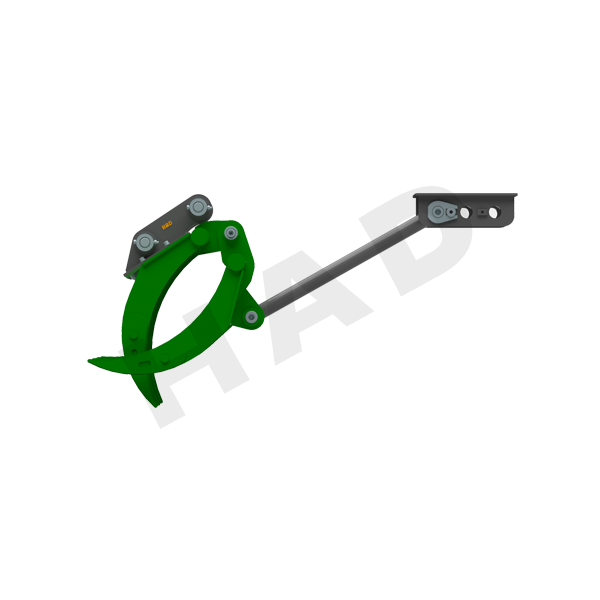

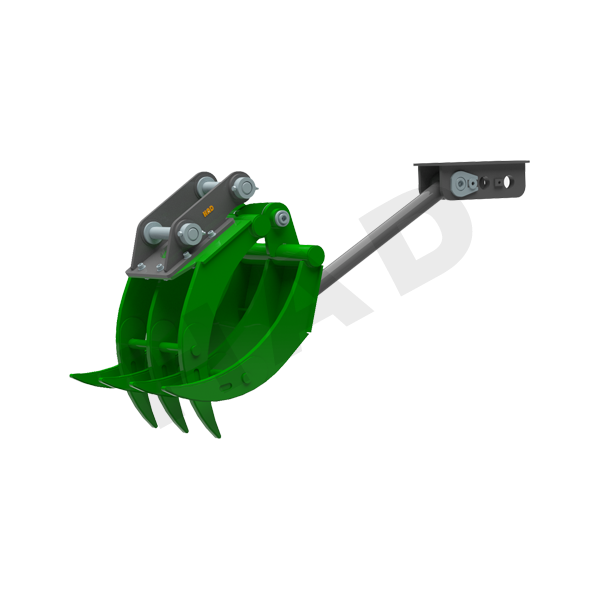

Mechanical Grapple
GET A QUOTE
Service Hotline:
TEL:+86 13022730962
EMAIL:sales@had-tech.com
PRODUCT DETAILS



Application range:

Grab wood, crops, etc.

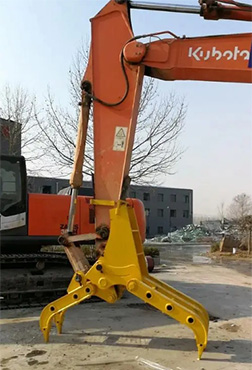

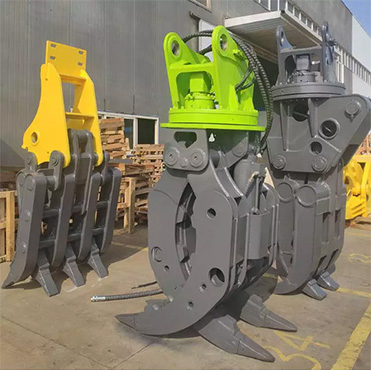

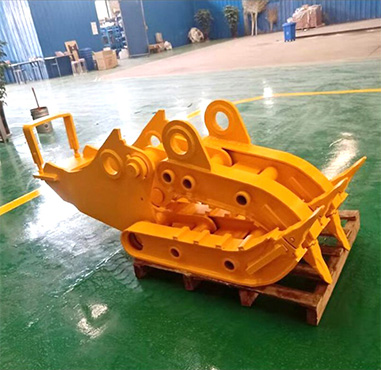

未标题-2.jpg 2未标题-2.jpg 3未标题-1.jpg

Product features:

1.Made of wear-resistant steel, lightweight and wear-resistant;

2.The pin shaft is made of alloy steel with an internal oil channel, which has high strength and good toughness;

3.Wide angle opening, strong grasping force, and light weight;

4.Lightweight and flexible, with good flexibility and high efficiency.

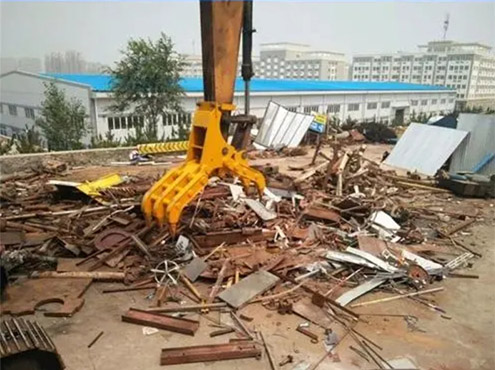

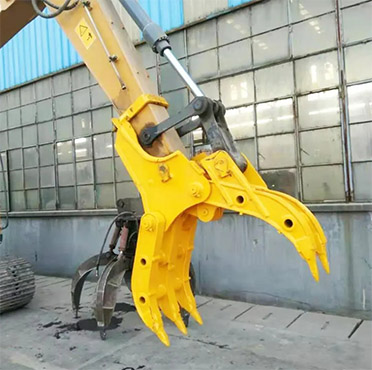

4未标题-2.jpg 5未标题-3.jpg

categoryUnitHD-02HD-04HD-06HD-08AHD-08BHD-10HD-014

Clamp size

mm

1300

1400

1800

2300

2500

2500

2500

Working pressure

kg/cm²

110 - 140

120 - 160

150 - 170

160 - 180

160 - 180

160 - 180

180 - 200

Necessary flow rate

lpm

30 - 55

50 - 100

90 - 110

100 - 140

130 - 170

130 - 170

200 - 250

Suitable excavator tonnage

ton

4 - 6

7 - 11

12 - 16

17 - 23

24 - 30

24 - 30

31 - 40

Weight

kg

320

390

740

1380

1700

1700

1900
