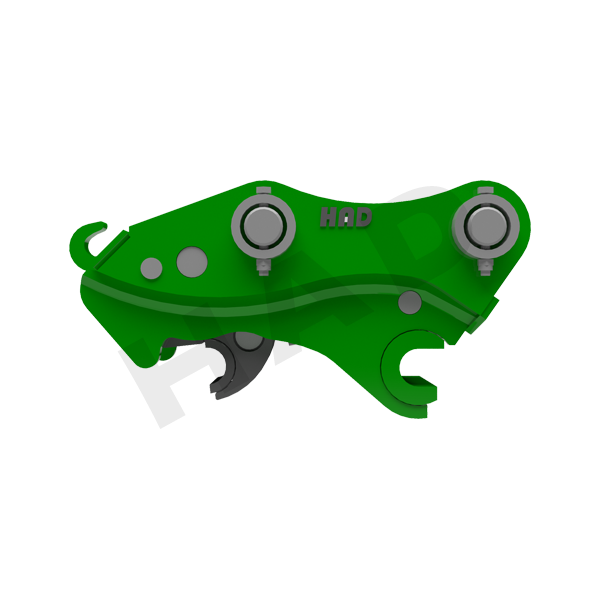

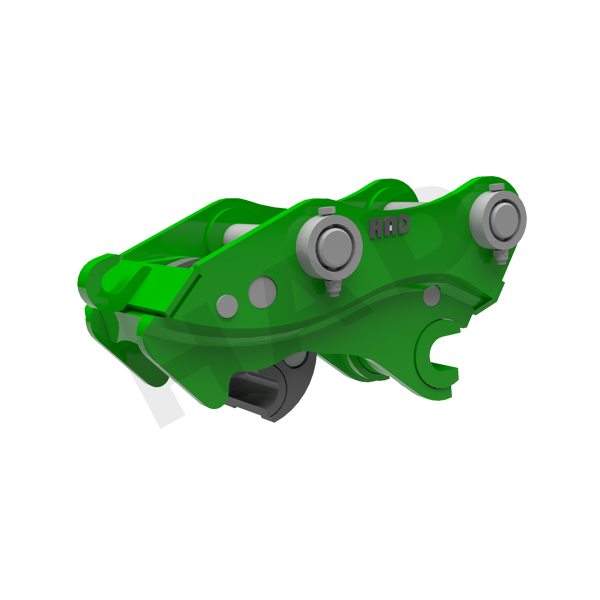

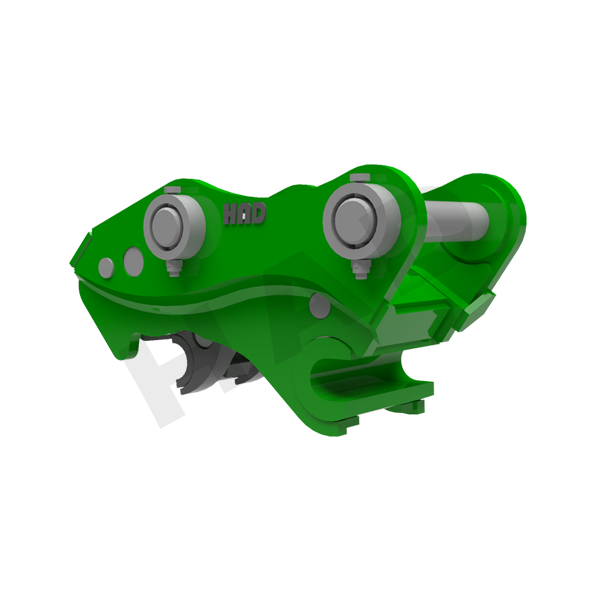

Application range：
0.8-25 ton excavator
Product features:
1.The shell is integrally formed, which is more wear-resistant, has a longer service life, and has a higher cost-effectiveness;
2.The pin shaft is made of alloy steel, with high strength and good toughness
3.Structural integrated mechanical design, durable and durable;
4.The precise positioning design of the safety pin ensures safety and reliability.
| category | HD-01 | HD-02 | HD-04 | HD-06 | HD-08A | HD-08B | HD-10 | HD-014 | HD-017 | HD-20 |
Total length C(mm) | 300-450 | 520-542 | 581-610 | 760 | 920-955 | 950-1000 | 965-1100 | 980-1120 | 1005-1150 | 1100-1200 |
| Total width B(mm) | 150-250 | 260-266 | 265-283 | 351-454 | 450-483 | 445-493 | 543-572 | 550-600 | 602-666 | 610-760 |
| Total height G(mm) | 225-270 | 312 | 318 | 400 | 512 | 512-540 | 585 | 550-600 | 560-615 | 620-750 |
| Boom opening gear A(mm) | 82-145 | 155-172 | 181-205 | 230-317 | 290-345 | 300-350 | 345-425 | 380-450 | 380-480 | 500-650 |
| Shaft Centre-to-centre distance D(mm) | 95-220 | 220-275 | 290-350 | 350-400 | 430-480 | 450-505 | 485-530 | 550-600 | 520-630 | 600-800 |
| Shaft Diameter(mm) | 20-45 | 40-45 | 45-55 | 50-70 | 70-90 | 90 | 90-100 | 100-110 | 100-110 | 120-140 |
| Cylinder stroke E(mm) | 95-200 | 200-300 | 300-350 | 340-440 | 420-510 | 450-530 | 460-560 | 510-580 | 500-650 | 600-700 |
| Distance between upper and lower axles F(mm) | 170-190 | 200-210 | 205-220 | 240-255 | 300 | 320 | 350-370 | 350-370 | 370-380 | 370-380 |
| weight(kg) | 30-40 | 50-75 | 80-110 | 170-210 | 350-390 | 370-410 | 410-520 | 550-750 | 550-750 | 1300-1500 |
| Working pressure(kgf/cm3) | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 |
| Necessary flow rate(l) | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
| Suitable excavator(ton) | 1-4 | 4-6 | 6-9 | 10-16 | 18-25 | 25-26 | 26-30 | 30-40 | 40-52 | 55-90 |
