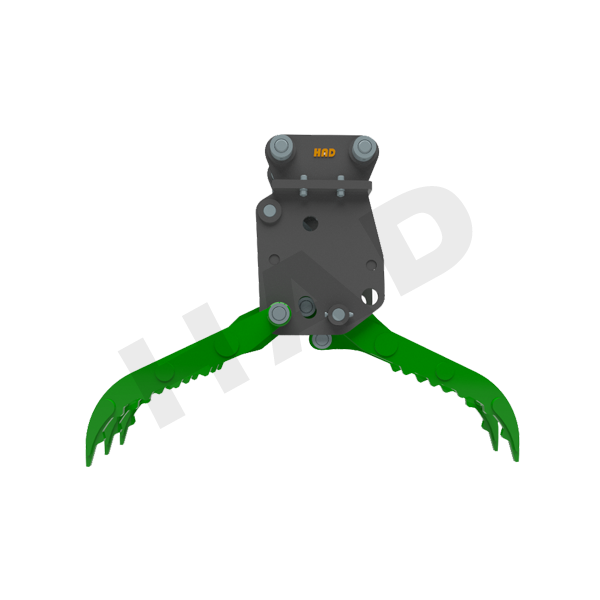

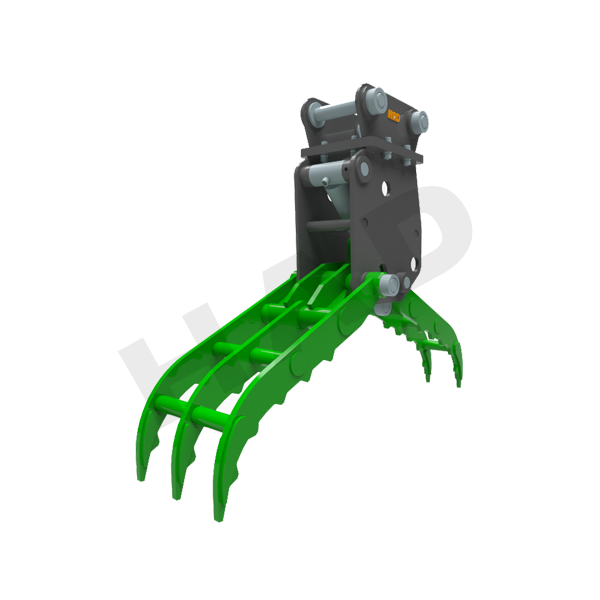

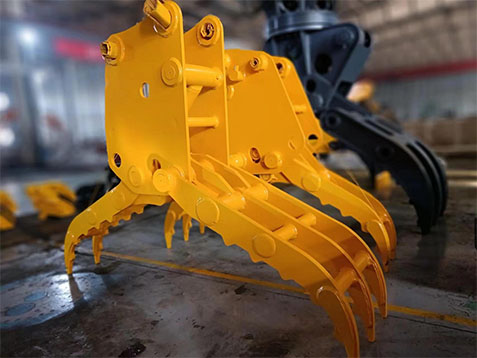

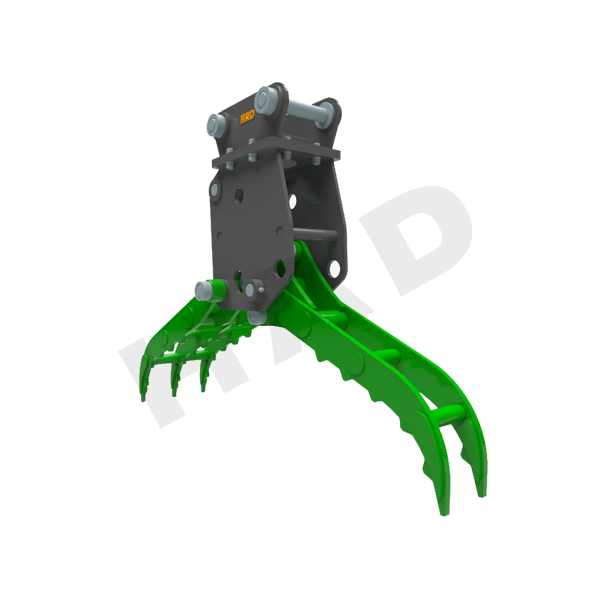

Hydraulic Graple
GET A QUOTE
Service Hotline:
TEL:+86 13022730962
EMAIL:sales@had-tech.com
PRODUCT DETAILS



Application range:

The disassembly, classification, and placement of wooden building structures, as well as the cleaning and loading and unloading of construction and household waste and debris.

Product features:

1.Made of high-quality steel with high strength and wear resistance;

2.The pin shaft is made of alloy steel with an internal oil channel, which has high strength and good toughness;

3.Customization of widened models according to needs, with 4+3, 5+4 and other different widths and angles available for down grabbing;

4.The oil cylinder is equipped with a throttle valve, pressure reducing valve, and overflow valve, which is safer and more stable, and easy to operate with a low failure rate.


categoryUnitHD-01HD-02HD-04HD-06HD-08

Working pressure

bar

80 - 110

110 - 140

120 - 160

150 - 170

160 - 180

Work flow

lpm

25 - 40

30 - 55

50 - 100

90 - 110

445-493

Open gear

mm

960

1200

1600

1800

2200

Suitable excavator tonnage

ton

1.5 - 3

4 - 6

6 - 9

12 - 16

17 - 23

weight

kg

65 - 150

120 - 150

150 - 180

400 - 550

650 - 800
