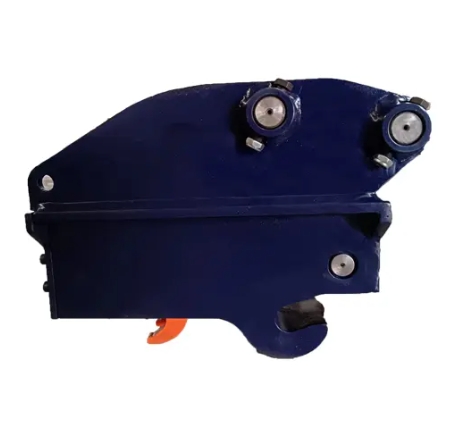

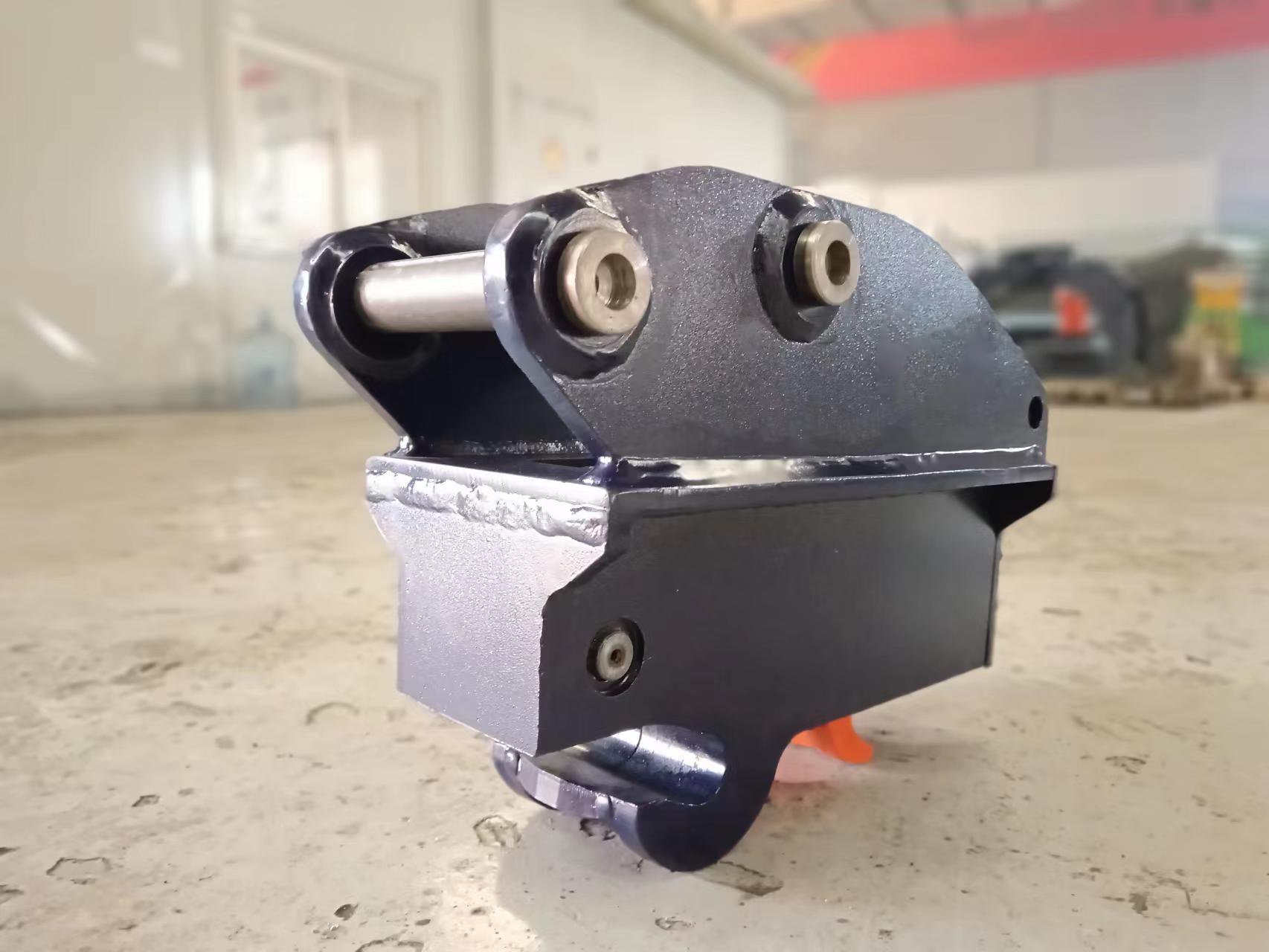

PRODUCT DETAILS
Application range:
0.8-25 ton excavator
Product features:
1.The shell is integrally formed, which is more wear-resistant, has a longer service life, and has a higher cost-effectiveness;
2.The pin shaft is made of alloy steel, with high strength and good toughness
3.Structural integrated mechanical design, durable and durable;
4.The precise positioning design of the safety pin ensures safety and reliability.
category | unit | HD-00 | HD-01A | HD-01B | HD-02 | HD-04 | HD-06 | HD-08 |
Total length C | mm | 400 | 410 | 455 | 520-542 | 581-610 | 760 | 920-955 |
Total width D | mm | 240 | 280 | 295 | 260-266 | 265-283 | 351-454 | 450-483 |
Total height G | mm | 185 | 250 | 258 | 312 | 318 | 400 | 512 |
Boom opening gear A | mm | 90-120 | 110-130 | 120-140 | 155-172 | 181-205 | 230-317 | 290-345 |
Shaft Centre-to-centre distance D | mm | 90-130 | 140-180 | 190-230 | 220-275 | 290-350 | 350-400 | 430-480 |
Shaft Diameter | mm | 20-30 | 30-40 | 30-400 | 40-45 | 45-55 | 50-70 | 70-90 |
Cylinder stroke E | mm | 90-130 | 140-180 | 190-230 | 200-300 | 300-350 | 350-400 | 420-510 |
Distance between upper and lower axles F | mm | 185 | 165 | 170 | 200-210 | 205-220 | 240-255 | 300 |
weight | kg | 24 | 32 | 37 | 50-75 | 80-110 | 170-210 | 350-390 |
Working pressure | kgf/cm3 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 |
Necessary flow rate | l | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
Suitable excavator | ton | 0.8-2 | 2-4 | 2-4 | 4-6 | 6-9 | 10-16 | 18-25 |
