PRODUCT DETAILS
Application range:

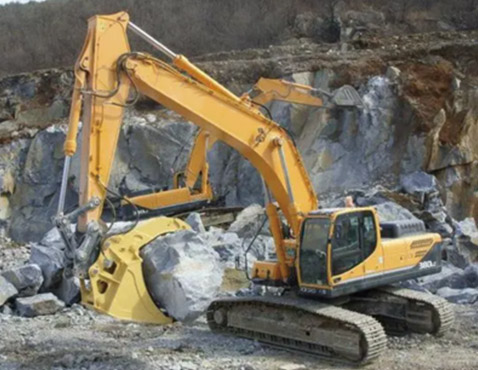

Bucket Grab: cleaning, loading and unloading of Construction waste, domestic waste and sundries, rock grab, engineering grab.
Product features:
1.Made of high-quality steel with high strength and wear resistance;
2.The pin shaft is made of alloy steel with an internal oil channel, which has high strength and good toughness;
3.The oil cylinder adopts honing tube and high-quality oil seal, with short working cycle and long service life.
category | Unit | HD-02 | HD-04 | HD-06 | HD-08 |
Rotation angle | ° | 360° | 360° | 360° | 360° |
Working pressure | bar | 110 - 140 | 120 - 160 | 150 - 170 | 160 - 180 |
Work flow | lpm | 30 - 55 | 50 - 100 | 90 - 110 | 100 - 140 |
Open gear | mm | 1260 | 1300 | 1700 | 2200 |
Suitable excavator tonnage | ton | 4 - 6 | 6 - 9 | 12 - 16 | 17 - 23 |
weight | kg | 263 | 280 | 730 | 1260 |
