Application range:
The disassembly, classification, and placement of wooden building structures, as well as the cleaning and loading and unloading of construction and household waste and debris.
Product features:
1.Made of high-quality steel with high strength and wear resistance;
2.The pin shaft is made of alloy steel with an internal oil channel, which has high strength and good toughness;

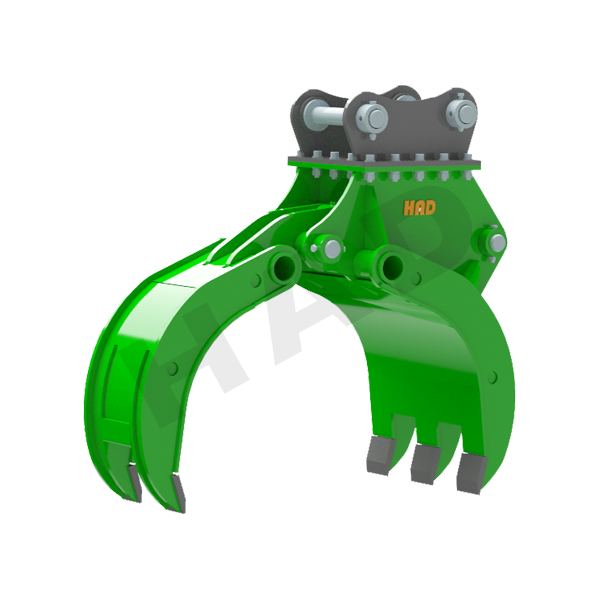

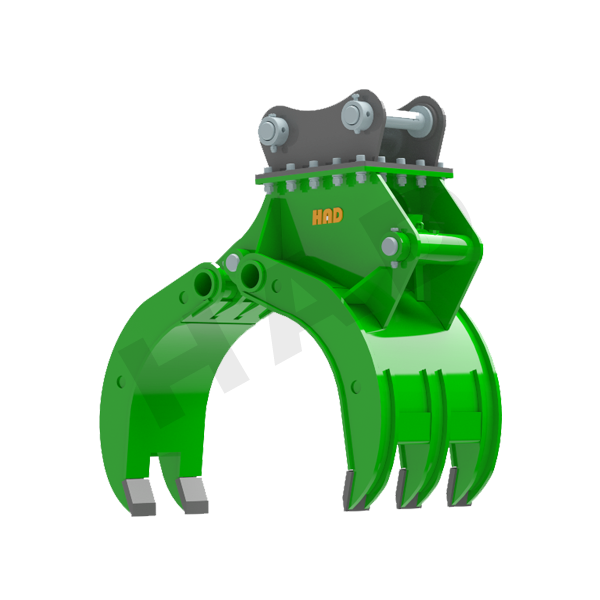

3.Customization of widened models according to needs, with 4+3, 5+4 and other different widths and angles available for down grabbing;
4.The oil cylinder is equipped with a throttle valve, pressure reducing valve, and overflow valve, which is safer and more stable, and easy to operate with a low failure rate.
category | Unit | HD-01 | HD-02 | HD-04 | HD-06 | HD-08 |
Working pressure | bar | 80 - 110 | 110 - 140 | 120 - 160 | 150 - 170 | 160 - 180 |
Work flow | lpm | 25 - 40 | 30 - 55 | 50 - 100 | 90 - 110 | 445-493 |
Open gear | mm | 750 | 830 | 900 | 1200 | 1500 |
Suitable excavator tonnage | ton | 1.5 - 3 | 4 - 6 | 6 - 9 | 12 - 16 | 17 - 23 |
weight | kg | 65 - 150 | 120 - 150 | 150 - 180 | 400 - 550 | 650 - 800 |
