Application range:

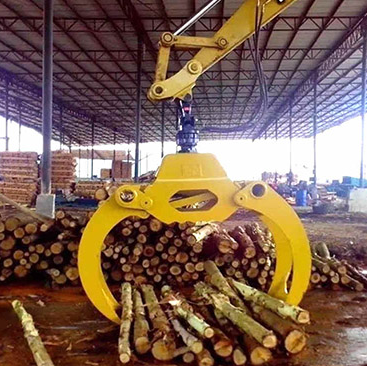

The disassembly, classification, and placement of wooden building structures, as well as the cleaning and loading and unloading of construction and household waste and debris.
Product features:
1.Made of high-quality steel with high strength and wear resistance;
2.The pin shaft is made of alloy steel with an internal oil channel, which has high strength and good toughness;
3.Customization of widened models according to needs, with 4+3, 5+4 and other different widths and angles available for down grabbing;
4.The oil cylinder is equipped with a throttle valve, pressure reducing valve, and overflow valve, which is safer and more stable, and easy to operate with a low failure rate.
category | Unit | HD-00 | HD-01 | HD-02 | HD-04 | HD-06A | HD-06B | HD-08 |
Max Jaw Opening | Kg/cm2 | 80-100 | 95-100 | 110-120 | 110-120 | 130-150 | 130-150 | 130-150 |
Motor Pressure | Lpm | 25-40 | 20-35 | 30-55 | 30-35 | 40-70 | 40-70 | 40-70 |
Necessary Flow | ton | 2 | 3 | 6 | 9 | 12 | 12 | 13 |
Oil Cylinder Force | Kg/cm2 | 110-140 | 110-140 | 160-220 | 160-200 | 180-230 | 180-230 | 180-230 |
Oil Cylinder Pressure | Lmp | 25-40 | 25-40 | 30-55 | 50-100 | 90-110 | 90-110 | 100-140 |
Excavator weight | ton | 1-2 | 3-4 | 4-6 | 6-9 | 11-14 | 14-16 | 17-25 |
Open Width A | mm | 905 | 1222 | 1322 | 1525 | 1833 | 1950 | 2530 |
Width C | mm | 313 | 330 | 407 | 470 | 644 | 488 | 604 |
Weight | kg | 110-120 | 240-260 | 350-370 | 420-450 | 740-770 | 810-860 | 1100-1160 |
