Application range：
0.8-25 ton excavator
Product features:
1.Made of high-quality steel with high strength and wear resistance;
2.The pin shaft is made of alloy steel, with high strength and good toughness;
3.The oil cylinder adopts honing tube and high-quality oil seal, with short working cycle and long service life;
4.The rotator is lightweight and has a long lifespan;
5.The precise positioning design of the safety pin ensures safety and reliability.

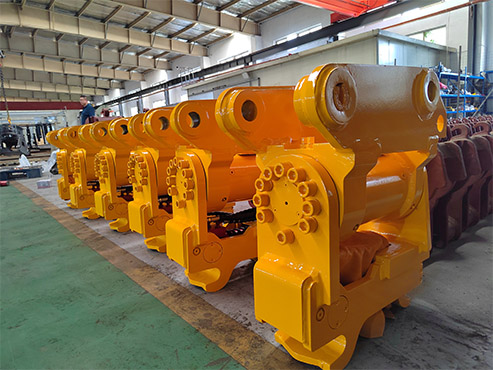

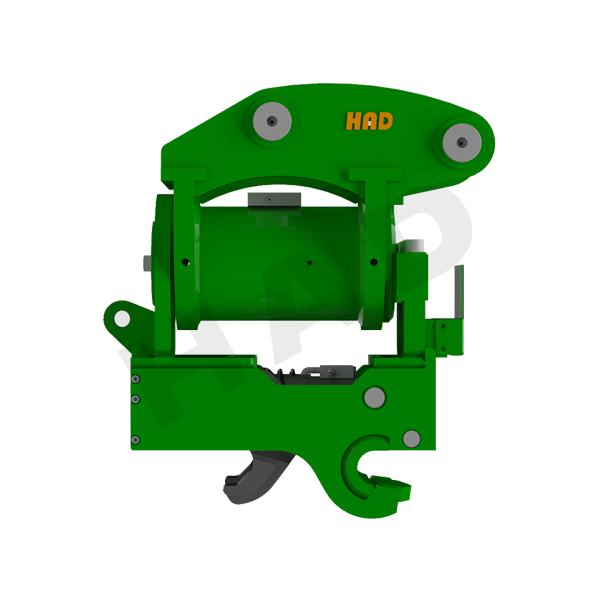

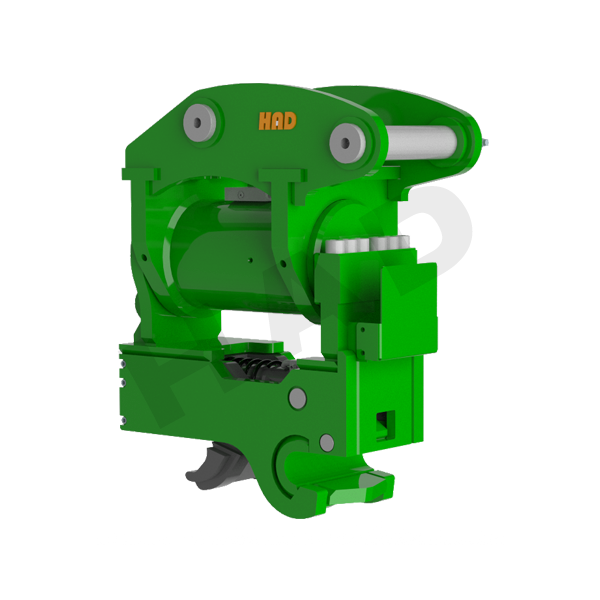

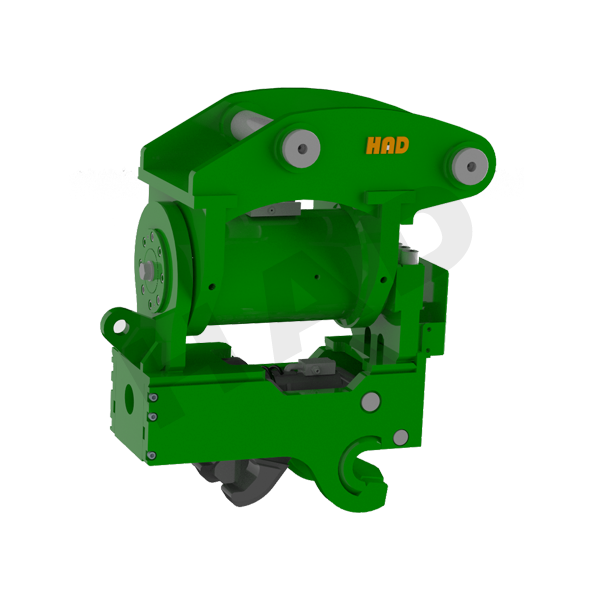

| 180 ° tilt quick connector | ||||||||||
| Category/Model | Unit | HD-00 | HD-01 | HD-02A | HD-02B | HD-04A | HD-04B | HD-06A | HD-06B | HD-08 |
Tilt Degree | ° | 180° | 180° | 180° | 180° | 180° | 180° | 140° | 140° | 140° |
Drive Torque | NM | 930 | 2870 | 4400 | 7190 | 4400 | 7190 | 10623 | 14600 | 18600 |
Tilt Working Pressure | Bar | 210 | 210 | 210 | 210 | 210 | 210 | 210 | 210 | 210 |
Tilt Necessary Flow | Lpm | 2-4 | 5-16 | 5-16 | 5-16 | 5-16 | 15-44 | 19-58 | 22-67 | 35-105 |
Quick Coupler Working Pressure | Bar | 25-300 | 25-300 | 25-300 | 25-300 | 25-300 | 25-300 | 25-300 | 25-300 | 25-300 |
Necessary Flow | Lpm | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 17-29 | 15-25 |
Excavator | Ton | 0.8-1.5 | 2-3.5 | 4-6 | 4-6 | 7-9 | 7-9 | 10-15 | 16-20 | 20-25 |
Overall Dimension (L*W*H) | mm | 477*280*567 | 477*280*567 | 518*310*585 | 545*310*585 | 541*350*608 | 582*350*649 | 720*450*784 | 800*530*864 | 858*500*911 |
Weight | Kg | 55 | 85 | 156 | 156 | 170 | 208 | 413 | 445 | 655 |
