PRODUCT DETAILS

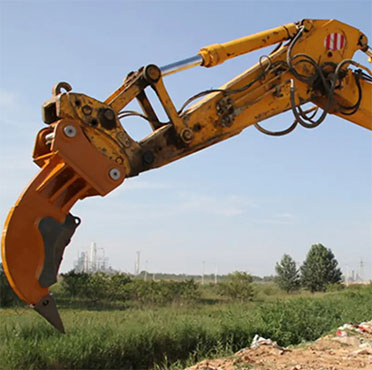

Application range:
Weathered rocks, hard soil, permafrost layers, and rock layers with cracks.
Product features:
1.Made of high-quality steel with high strength and corrosion resistance;
2.The key parts are reinforced with wear-resistant steel, which has a longer service life;
3.The pin shaft is made of alloy steel with an internal oil channel, which has high strength and good toughness;
4.Excellent replaceability and wear resistance.
category | Unit | HD-06 | HD-08 | HD-08S | HD-10 | HD-14 | HD-17 | HD-20 |
Boom opening gear | mm | 265 | 334 | 420 | 420 | 470 | 420 | 580 |
Total height | mm | 1150 | 1200 | 1450 | 1450 | 1550 | 1550 | 1650 |
Total height G(mm) | mm | 65 | 90 | 90 | 90 | 110 | 110 | 110 |
Boom opening gear A(mm) | kg | 300-400 | 550-650 | 600-700 | 600-700 | 700-850 | 700-850 | 800-1000 |
tonShaft Centre-to-centre distance D(mm) | ton | 12-15 | 20-25 | 25-30 | 25-30 | 30-45 | 30-45 | 45-90 |
